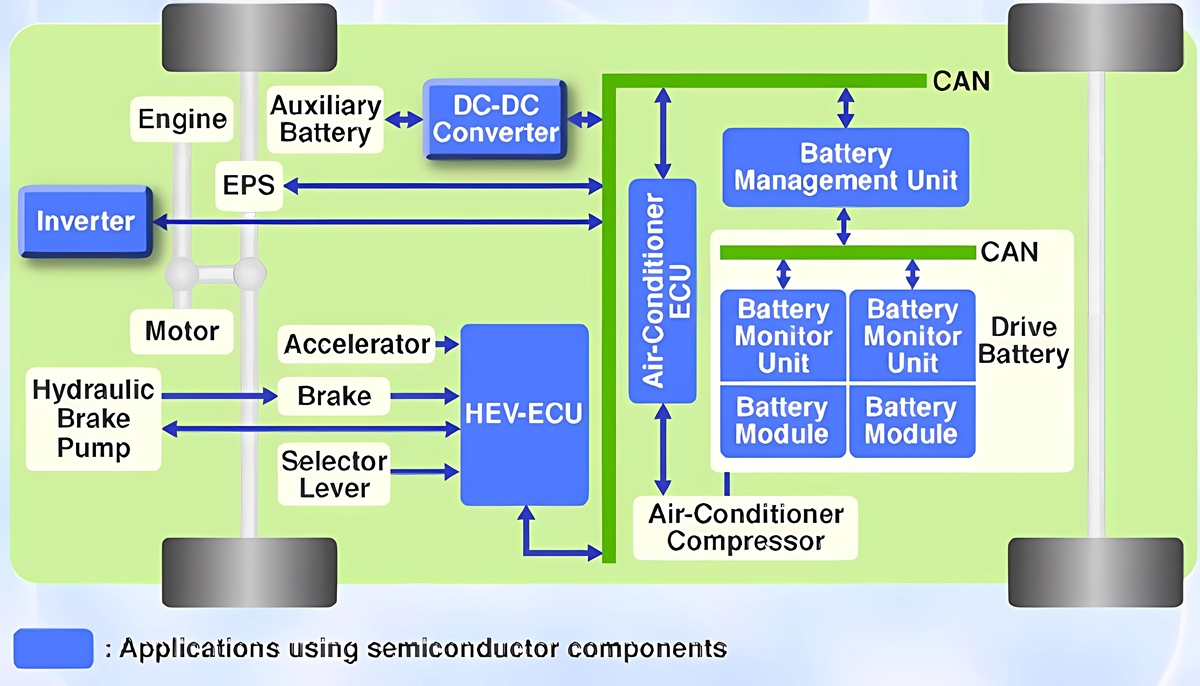

車用-電源架構

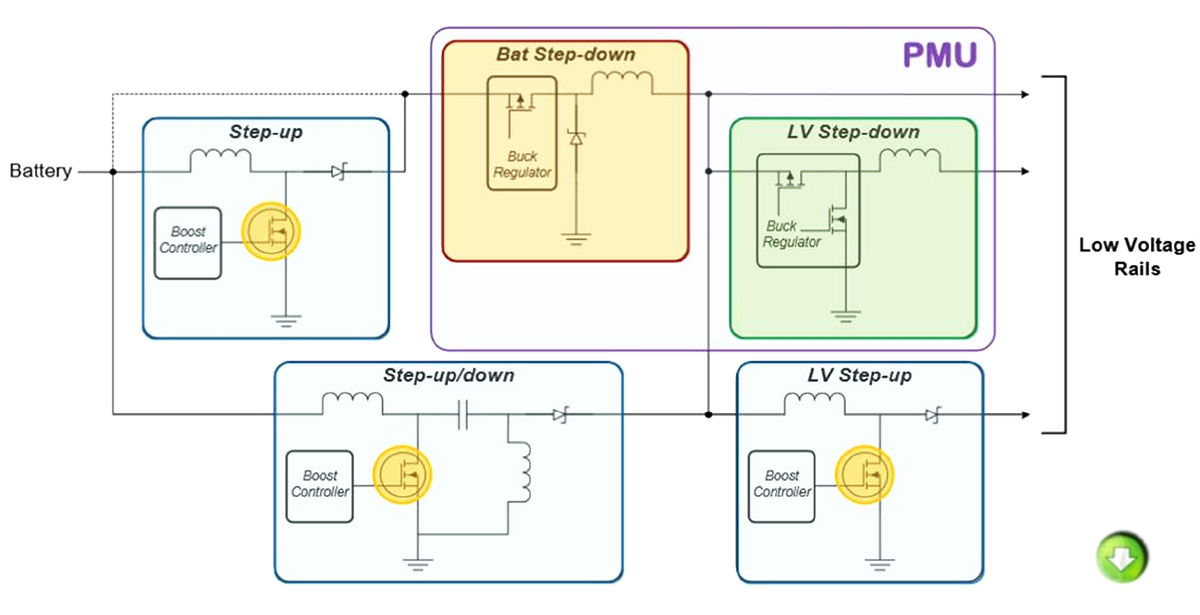

車用-電源架構-DCDC
車用-ECU用料
| Application |
Rectron Parts |
Category |
VR |
IO |
Surge Current |
Vf |
Ir |
Package |
Mounting Style |
| ECU |
1A4-J |
Standard Rectifiers |
400 V |
1.0 A |
25 A |
1.0 V |
1.0 uA |
R-1 |
Through Hole |
| 1A4-E |
400 V |
1.0 A |
25 A |
1.0 V |
1.0 uA |
R-1 |
Through Hole |
| RL154 |
1000 V |
1.5 A |
60 A |
1.1 V |
5 uA |
DO-15 |
Through Hole |
| 1A4-E |
400 V |
1.0 A |
25 A |
1.0 V |
1.0 uA |
R-1 |
Through Hole |
| 1A4-F |
400 V |
1.0 A |
25 A |
1.0 V |
1.0 uA |
R-1 |
Through Hole |
| 1A4-J |
400 V |
1.0 A |
25 A |
1.0 V |
1.0 uA |
R-1 |
Through Hole |
| 1A5-F |
400 V |
1.0 A |
25 A |
1.0 V |
1.0 uA |
R-1 |
Through Hole |
車用-音響使用料號
| Application |
Rectron Parts |
Category |
VR |
IO |
Surge Current |
Vf |
Ir |
Package |
Mounting Style |
| Car Audio |
1A4-J |
Standard Rectifiers |
400 V |
1.0 A |
25 A |
1.0 V |
1.0 uA |
R-1 |
Through Hole |
| 6A4 |
1000 V |
6.0 A |
400 A |
1.0 V |
0.3 uA |
R-6 |
Through Hole |
| RL202 |
1000 V |
2.0 A |
70 A |
1.1 V |
5 uA |
DO-15 |
Through Hole |
| RL3 |
1000 V |
2.0 A |
70 A |
1.1 V |
5 uA |
DO-15 |
Through Hole |
| RL253 |
1000 V |
2.5 A |
150 A |
1.0 V |
5 uA |
R-3 |
Through Hole |
| 1A2 |
1000 V |
1.0 A |
25 A |
1.0 V |
1.0 uA |
R-1 |
Through Hole |
| 1A2-J |
1000 V |
1.0 A |
25 A |
1.0 V |
1.0 uA |
R-1 |
Through Hole |
| 1A4-J |
400 V |
1.0 A |
25 A |
1.0 V |
1.0 uA |
R-1 |
Through Hole |
| 1S30 |
Schottky Diodes |
30 V |
1.0 A |
20 A |
0.55 V |
200 uA |
R-1 |
| 1S30-J |
30 V |
1.0 A |
20 A |
0.55 V |
200 uA |
R-1 |
Through Hole |
| 1S40-J |
40 V |
1.0 A |
20 A |
0.55 V |
200 uA |
R-1 |
Through Hole |
| RS105 |
Bridge Rectifiers |
600 V |
1.0 A |
30 A |
1.0 V |
5.0 uA |
RS-1 |
Through Hole |
車用-車燈使用料件
| Application |
Rectron Parts |
Category |
Power Rating |
Polarity |
Vbr |
Standoff Voltage |
Vc |
Ipk |
Package |
| Car lighting |
SMAJ18A |
TVS Diodes |
400 W |
Unidirectional |
21.1 V |
18 V |
29.2 V |
13.7 A |
SMA |
| SMAJ24CA |
400 W |
Bidirectional |
28.1 V |
24 V |
38.9 V |
10.3 A |
SMA |
| FM4007 |
Standard Rectifiers |
1000 V |
1.0 A |
30 A |
1.0 V |
0.5 uA |
SMA |
SMD/SMT |
| 1N4007 |
1000 V |
1.0 A |
30 A |
1.0 V |
0.2 uA |
DO-41 |
Through Hole |
| FM260 |
Schottky Diodes |
60 V |
2.0 A |
60 A |
0.63 V |
60 uA |
SMB |
SMD/SMT |
車用燈光控制-建議用料
| 項目 |
料號 |
項目 |
料號 |
| TVS |
1.5FMCJ39CA |
SCHOTTKY |
2SS100L |
| TVS |
1.5FMCJ350A |
SCHOTTKY |
2SS100L |
| TVS |
1.5KE22A 1 |
SCHOTTKY |
2SS100W |
| TVS |
SMAJ16A |
SCHOTTKY |
FM140 |
| TVS |
SMAJ17A |
SCHOTTKY |
FM260V |
| TVS |
SMBJXXX |
SCHOTTKY |
FM540B |
| TVS |
TFMCJ40A |
SCHOTTKY |
FM2150 |
| TVS |
P4SMA540A |
SCHOTTKY |
FM5100B |
| TVS |
P6FMBJ39A |
SCHOTTKY |
FM5150 |
| TVS |
P6FMBJ250A |
SCHOTTKY |
FM5822A |
| ZENER |
MMSZ4705 |
SCHOTTKY |
HFM108 |
| RECTIFIER |
R4000G |
SCHOTTKY |
SR3200P |
| RECTIFIER |
6A10G |
SCHOTTKY |
SR6100CS |
| RECTIFIER |
6A10G |
SCHOTTKY |
SS40L |
| SUPER FAST RECTIFIER |
ES2JF |
NPN |
BCW66K |
| SMALL SIGNAL DIODE |
1N4148W |
NPN |
BCW66K |
BCU應用料件
| Application |
Rectron Parts |
Category |
VR |
IO |
Surge Current |
Vf |
Ir |
Package |
Mounting Style |
| Sun Roof |
SM4003 |
Standard Rectifiers |
200 V |
1.0 A |
30 A |
1.1 V |
5 uA |
MELF |
SMD/SMT |
| BAS16 |
Signal-Switching Diodes |
75 V |
150 mA |
2.0 A |
1.0 V |
1 uA |
6 ns |
SOT-23 |
| CMBZ5232B |
Zener Diodes |
300 mW |
5.6 V |
5.32 V |
5.88 V |
20 mA |
5 uA |
SOT-23 |
| Rectron Parts |
Category |
VR |
IO |
Surge Current |
Vf |
Ir |
Package |
Mounting Style |
| Power Window Control |
1N4004-T |
Standard Rectifiers |
1000 V |
1.0 A |
30 A |
1.0 V |
0.2 uA |
DO-41 |
Through Hole |
| 1N4004 |
Standard Rectifiers |
1000 V |
1.0 A |
30 A |
1.0 V |
0.2 uA |
DO-41 |
Through Hole |
| Power Steering |
FM4005-T |
Standard Rectifiers |
600 V |
1.0 A |
30 A |
1.0 V |
0.5 uA |
SMA |
SMD/SMT |
| FM360B |
Schottky Diodes |
60 V |
3.0 A |
100 A |
0.75 V |
60 uA |
SMB |
SMD/SMT |
電池管理-應用料件
| Application |
Rectron Parts |
Category |
VR |
IO |
Surge Current |
Vf |
Ir |
Package |
Mounting Style |
| BMS |
FM4007 |
Standard Rectifiers |
1000 V |
1.0 A |
30 A |
1.0 V |
0.5 uA |
SMA |
SMD/SMT |
| FM160 |
Schottky Diode |
60 V |
1.0 A |
50 A |
0.7 V |
40 uA |
SMA |
SMD/SMT |
| FM2100A |
Schottky Diode |
100 V |
2.0 A |
60 A |
0.85 V |
5 uA |
SMA |
SMD/SMT |
| SRL8100P |
Schottky Diode |
100 V |
8.0 A |
150 A |
0.65 V |
25 uA |
DO-277 |
SMD/SMT |
| HFM106 |
Recovery Diode |
600 V |
1.0 A |
30 A |
1.7 V |
5 uA |
75 ns |
SMA |
| SMBJ26A |
TVS Diodes |
600 W |
Unidirectional |
30.4 V |
26 V |
42.1 V |
14.3 A |
SMC |
| SMAJ70A |
TVS Diodes |
400 W |
Unidirectional |
81.9 V |
70 V |
113 V |
3.5 A |
SMA |
| 3KPSMC36A |
TVS Diodes |
600 W |
Unidirectional |
30.4 V |
26 V |
42.1 V |
14.3 A |
SMC |
BMS 高壓MOS 器件-建議用料
| Part number |
Package |
VDS max |
ID |
| RM6N800IP |
TO-252 |
800V |
6A |
| RM6N800LD |
TO-251 |
800V |
6A |
| RM6N800HD |
TO-263 |
800V |
6A |
| RM6N800T |
TO-220F |
800V |
6A |
| RM6N800T2 |
TO-220 |
800V |
6A |
| RMP7N80T2 |
TO-220F |
800V |
7A |
| RMP7N80T2 |
TO-220 |
800V |
7A |
| RM11N800T2 |
TO-220F |
800V |
11A |
| RM11N800T |
TO-220 |
800V |
11A |
| RM17N800T |
TO-220F |
800V |
17A |
| RM17N800T2 |
TO-220 |
800V |
17A |
| RM17N800HD |
TO-263 |
800V |
17A |
| RM5N900IP |
TO-251 |
900V |
5A |
| RM5N900LD |
TO-252 |
900V |
5A |
| RMP04N100T |
TO-220 |
1000V |
4A |
空調系統-應用料件
| Application |
Rectron Parts |
Category |
VR |
IO |
Surge Current |
Vf |
Ir |
Package |
Mounting Style |
| Air Conditioner |
FM4004-T |
Standard Rectifiers |
400 V |
1.0 A |
30 A |
1.0 V |
0.5 uA |
SMA |
SMD/SMT |
| FM4005-T |
Standard Rectifiers |
600 V |
1.0 A |
30 A |
1.0 V |
0.5 uA |
SMA |
SMD/SMT |
| Keyless BCM |
FM4004-T |
Standard Rectifiers |
400 V |
1.0 A |
30 A |
1.0 V |
0.5 uA |
SMA |
SMD/SMT |
| 1A3-T |
Standard Rectifiers |
1000 V |
1.0 A |
25 A |
1.0 V |
0.5 uA |
R-1 |
Through Hole |
| BCM |
FM204-W |
Standard Rectifiers |
400 V |
2.0 A |
60 A |
1.0 V |
1 uA |
SMB |
SMD/SMT |
